Technology Name: GammaCam Radiation Imaging System

Demonstration Name:Detailed Survey | Demonstrated on: 12/1/1996
Demonstration Site: Argonne National Laboratory-East

Demo Objective

-Determine the capabilities, limitations, and suitable applications of the GammaCam system -Survey large floor or wall areas that may be contaminated due to spills -Use of the system to identify the relative location and strength of different radioactive sources located in a large concrete vault through and opening in the shield wall -Demonstration of the usefulness of the composite two-dimensional radiation and visual images in determining shielding needs and in positioning subsequent shielding

Demo Results

The system performed well during the CP-5 demonstration by successfully providing two-dimensional color images of gamma radiation fields superimposed on the corresponding visual black and white image. No significant problems with the system were identified in the 3-day test despite considerable movement and relocation of the device

Pictures

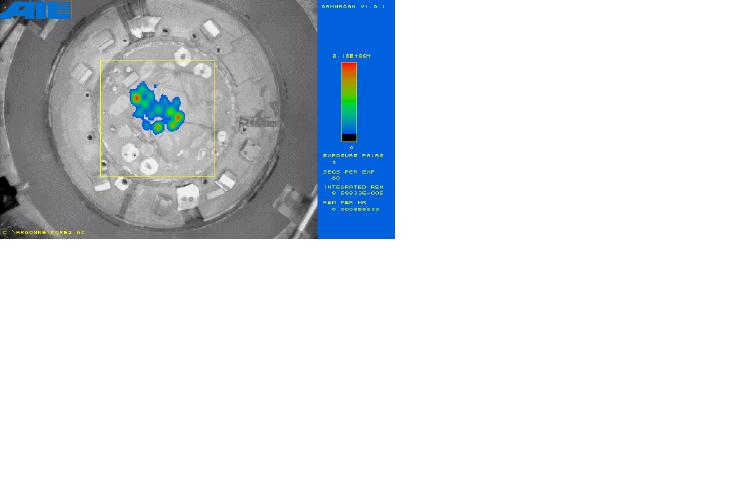

	Display of CP-5 Reactor internals using GammaCam Imaging System.
	Image of two sources in Cave area
	GammaCam Monitoring
