Technology Factsheet

AC-Cell 100 Crawler Inspection System

Category: Robotics > Characterization and Inspection > Wheeled/Tracked System
Reference # : Model No :

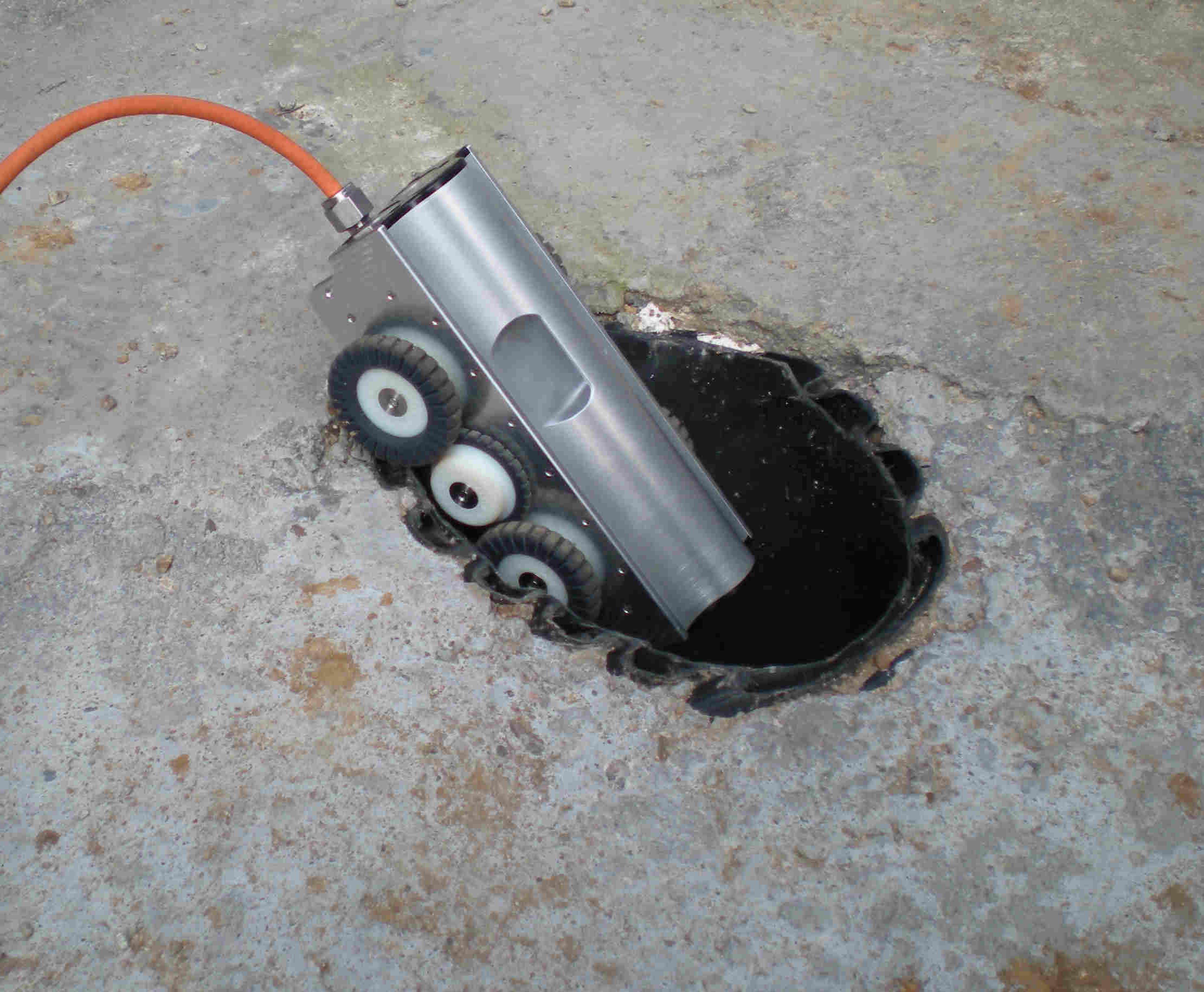

The AC-Cell 100 is a six-wheel all-drive crawler that can be configured with a range of wheel types and sizes to suit differing pipe diameters and terrain. Fitted with a low light front facing color camera, a light sensitive rear view black-and-white camera, and dual arc LED's at both ends as standard. The AC-CELL is ideal for inspecting hard to reach spaces.

100 m depth rating
100 mm drive through
73 mm drive under


* Robust and reliable low maintenance design.
* Rugged waterproof hand carry case with a total weight of 20 kg.
* Easily deployed in less than 3-minutes.
* Single operator system in all aspects of its operation.
